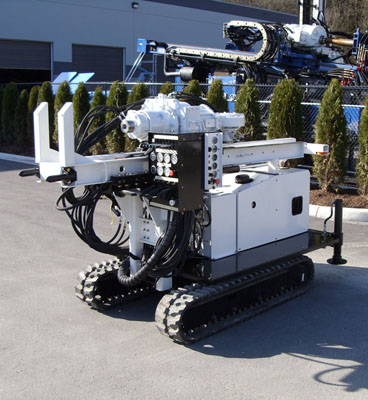

PRODUCTS - PROBE 150

STANDARD FEATURES

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (two)

80 gallon hydraulic oil tank (approximately)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Control console, swing mounted

Safety and operation manual (two copies, English)

Three hole pump drive box (Funk) complete with clutch

Approximately 14 gallons hydraulic oil (AW46)

35 HP diesel powered unit (Kubota, 4 cylinder Tier 4/T3 & EU Stage 3a) complete with enclosure

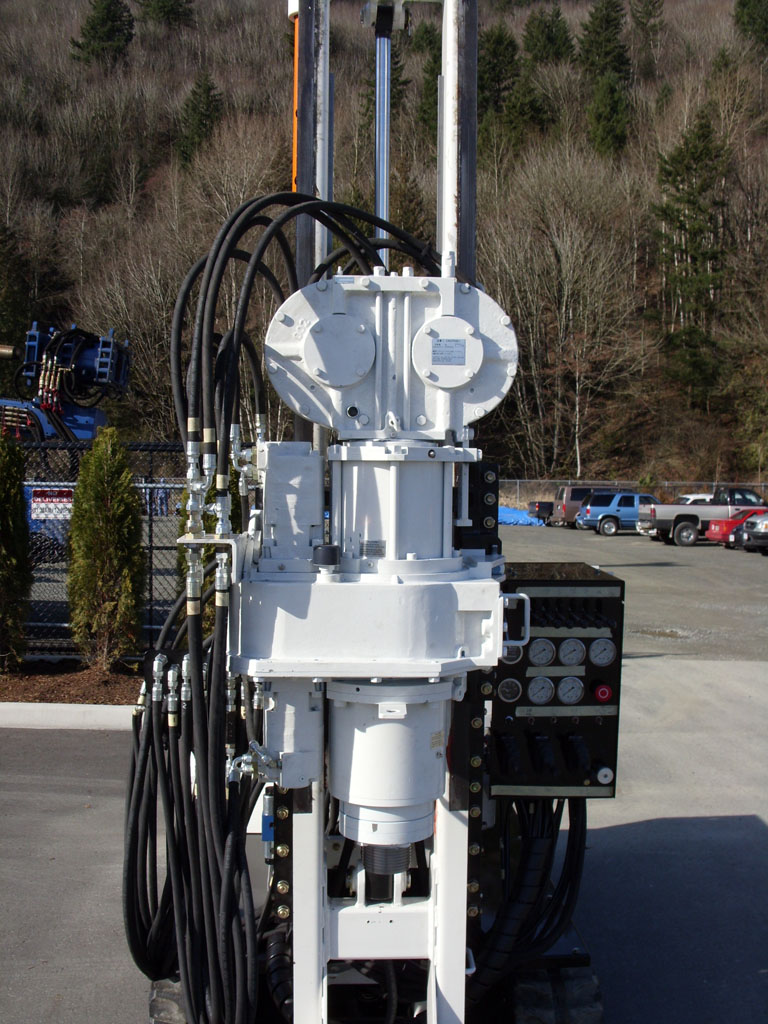

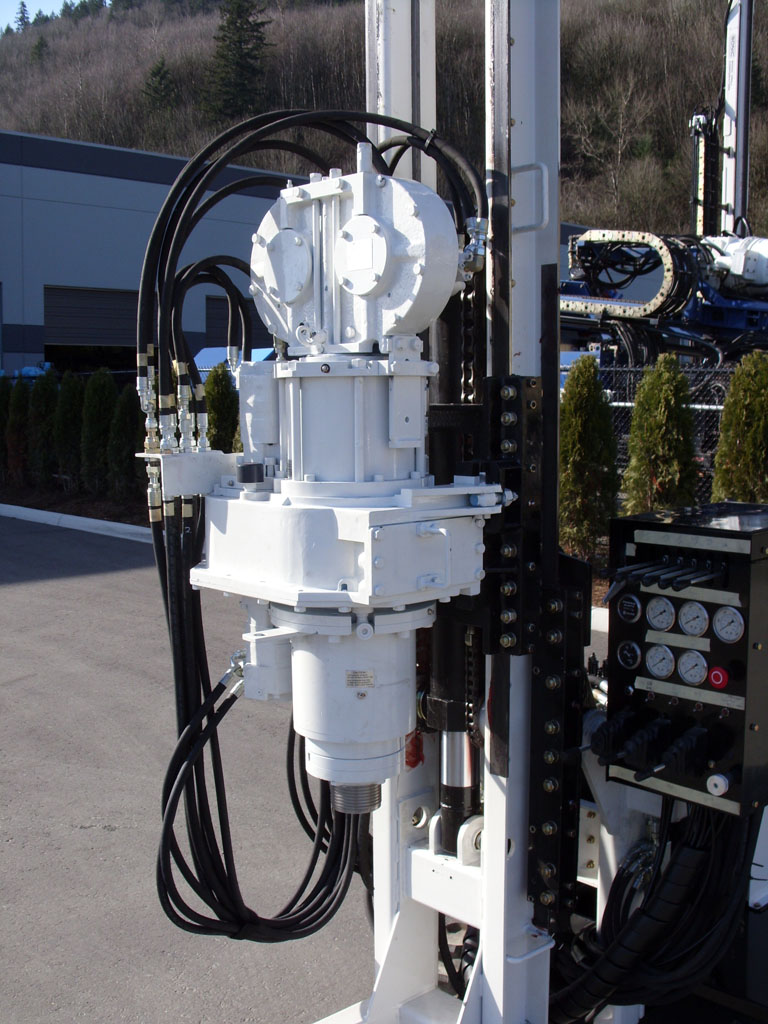

EP-26 drill head

OPTIONAL FEATURES

Accessory power port, 12V

Breakout table, tower mounted (2 in (51 mm) to 6 in (152 mm) nominal, 2 level)

Breakout table, tower mounted (2 in (51 mm) to 6 in (152 mm) nominal, 3 level)

Custom colour (non-metallic)

Decontamination racks

Extended mast (increases tower maximum drill rod length to 6-1/2 ft (2 m)

Horizontal tower positioner (4 way)

Hydraulic oil type (non standard)

Jib hoist complete with 1,100 lb (500 kg) winch (164 FPM (50mPM) max)

Lighting package

Operator training and on site assistance

Machine vise and mount

Receiver hitch hookup

Pipe guides (includes 1 standard size insert)

Stationary rod rack (for 5 ft (1.5m) rods)

One auxiliary hydraulic service line with electrical, valve and hydraulic quick disconnect

Water pump, FMC Model E0413 HD (20 GPM (76 LPM)/600 PSI (41 BAR))

Water transport system

DIMENSIONS

WEIGHT (APPROXIMATE)		4,500 lbs	2,041 kgs
Width		49 in	1245 mm
Length	Mast folded	120.25 in	3054 mm
Height	Mast folded	72.5 in	1842 mm
	Mast folded (foot & head removed)	60 in	1524 mm
	Mast raised (jib in lowest position)	120.5 in	3061 mm
	Mast raised (jib in highest position)	147.5 in	3747 in
	Mast raised (jib removed)	116 in	2946 mm
