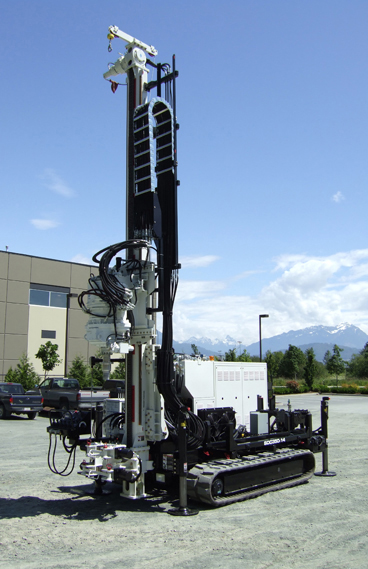

PRODUCTS - SDC350 (TRACK)

STANDARD FEATURES

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)

14 foot (4.25 m)drill head travel complete with 90 degree tilt

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (four)

Safety decals (english)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Main control console

Operator's control console (swing arm mount)

Safety and operation manual (two copies, English)

Three hole pump drive box (Funk) complete with clutch

Deck mounted power unit (173 HP Cat, 12V) complete with enclosure

Hose track assembly for tower hosing

Rubber track assembly

Sonicor 33K drill head

OPTIONAL FEATURES

Manual single rod handler

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 3 level)

Custom colour (non-metallic)

Deck boxes with locks (2 only)

Hydraulic oil type (non-standard)

Jib hoist complete with 4,000lb (1815 kg) winch (top mount, 72 FPM (22 mPM) max)

LGP (low ground pressure) steel tracks

Lighting package (tower)

Operator training and on site assistance

Progressive cavity pump

Receiver hitch hookup

Secondary oil cooler package

Side shift (head)

SPT hammer with cradle mount, hydraulic control circuit and quick disconnect hoses

Pipe guide set (includes 3 standard size inserts)

Stationary rod rack (for 10 ft (3 m)rods)

Tower slide, bumper and controls (36 in (915 mm) travel)

Two auxiliary hydraulic service lines with electrical, valve and hydraulic quick disconnects

Water pump, Bean Model W1122 BCD (37 GPM (140 LPM)/1000 PSI (69 BAR))

Water pump, Bean Model L1122D HSNAR (75 GPM (284 LPM)/1000 PSI (69 BAR), abrasion resistant)

Water tank (undercarriage mount)

Wireless controller (track control only)
