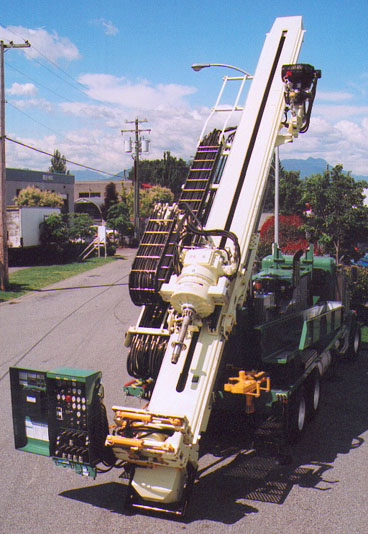

PRODUCTS - SDC500-28EA

STANDARD FEATURES

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)

24 ft (? m) drill head travel complete with 90 degree tilt

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (four)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Pull back illuminated control console complete with valving, controls and hinged security cover (vertical)

Safety and operation manual (two copies, English)

Three hole pump drive box, complete with clutch

180 gal (US) (? L) hydraulic oil (approximately, standard grade)

Deck mounted power unit (250 HP Cat, 24V) complete with enclosure

Hose track assembly for tower hosing

Sonicor 50K drill head

OPTIONAL FEATURES

Air tank complete with quick disconnect (for blow down)

Automated Rod Handler with storage (requires rough-in package)

Auxilliary hydraulic service lines with electrical, valve and hydraulic quick disconnects (2 only)

Bolting pads (rear side of A-frame)

Custom colour (non-metallic)

Deck boxes with locks (1 only)

Grout plant (double drum) complete with valving and controls)

Heavy duty breakout table (4 to 12 inch nominal)

Hydraulic oil type (non-standard)

Jib hoist complete with 4000 pound winch (top mount, 72 FPM max)

Lighting package (tower)

Operator training and on site assistance

Rod spinner complete with mounting arms

Rough-in package for Automated Rod Handler

Secondary oil cooler package

Side shift (head)

Pipe guide set (includes 3 standard size inserts)

Stationary rod rack (for 20 foot rods)

Tower slide, bumper and controls (48 inch travel)

Water pump, Bean Model W1122 BCD (37 GPM/1000 PSI)

Water pump, Bean Model L1122D HSNAR (75 GPM/1000 PSI, abrasion resistant)

Wiggle tail

Working platform bridge
